Rubik R-31 Dupla

DONNÉES GÉNÉRALES
Année du premier vol
(ou de design, si seul projet)
1983
Pays Hongrie
Designer(s) RUBIK, Ernõ
Premier constructeur Ernõ Rubik and the workshop of the National Civil Defence Assiciation (MHSz), Budaörs
Type d'appareil Planeur
Fonction Entraînement

SPÉCIFICATIONS TECHNIQUES
Envergure 13 m
Longueur 7.5 m
Hauteur--
Allongement11.3
Surface alaire15 m2
Profil aile--
Masse à vide188 kg
Masse maxi390 kg
Charge alaire26 kg/m2
Vitesse mini--
Vitesse maxi160 km/h
Finesse maxi22
Taux de chute mini1.3 m/s à 72 km/h
Nb sièges2
StructureTout métal.

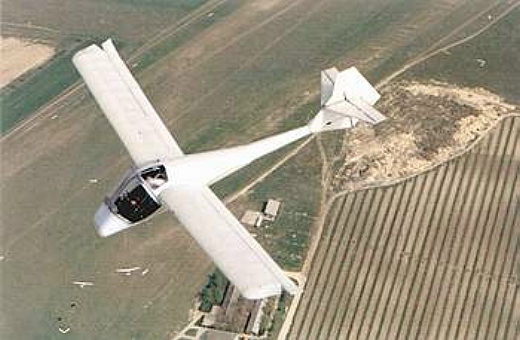

[Photo d'origine inconnue]

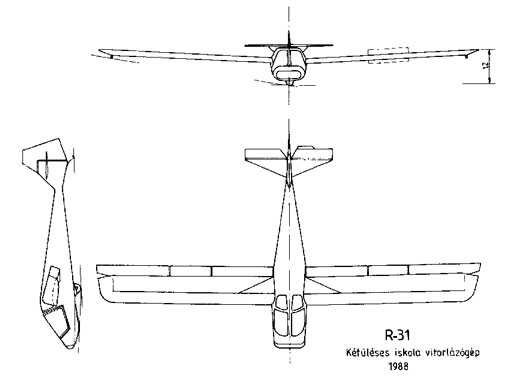

[Plan 3 vues d\'origine inconnue]

AUTRES INFORMATIONS

Constructeur(s)
ConstructeurConstruits
Ernõ Rubik and the workshop of the National Civil Defence Assiciation (MHSz), Budaörs1
Nombre total de constructions1
Infos techniquesVolets à fente.
Histoire résuméeThe R-31 Dupla was designed by Ernõ Rubik, who had been retired for years at the time of the design work. His intention was to create a cheap, light, basic instruction glider, which could be the successor of the phaseing out R-26s Góbé gliders. The structure was designed for permissible load factors of +5,3/-2,7.
Originally it was a private venture of Rubik, who started to build the glider in his own garage. Later the MHSz (the National Civil Defence Association, responsible all technical sports in Hungary) supported him offering to finish the glider in its workshop located in Budaörs, and to execute the test flights. The glider got only a temporary certification to conduct the test flights. The glider first flew in 1983 and was tested between 1983 and 1986. 26 flights were executed with 8 hours total time.
The test flights finally were abandoned as vibration had occurred at all speed ranges. Her performances were well under that those of the R-26s Góbé. The procect was dropped as the R-31's performance as well as flight handling characteristics had not been suitable to prepare student pilots to fly such gliders as the SZD-30 Pirat.
Liens personnalités Pas de personnalité associée.
RemarquesDupla = double

SOURCES DOCUMENTAIRES

Liens WEBSite : Hungarian Gliders (site de Gábor Fekecs) . Note + 3 photos + plan 3 vues + specs. (2010-06-03 CL)
LivresPas de livre référencé.

MODÈLES RÉDUITS

Pas de plan ou kit référencé.
Fiche n° 1115 [Dernière mise à jour : 2010-06-13]
