Akaflieg Braunschweig SB-14
| DONNÉES GÉNÉRALES |
| Année du premier vol (ou de design, si seul projet) |
2003 |
| Pays | Allemagne |
| Designer(s) | Akaflieg Braunschweig |
| Premier constructeur | Akaflieg Braunschweig e. V. |
| Type d'appareil | Planeur |
| Fonction | Performance |
| SPÉCIFICATIONS TECHNIQUES |
| Envergure | 18 m |
| Longueur | -- |
| Hauteur | -- |
| Allongement | -- |
| Surface alaire | -- |
| Profil aile | -- |
| Masse à vide | 240 kg |
| Masse maxi | -- |
| Charge alaire | -- |
| Vitesse mini | -- |
| Vitesse maxi | -- |
| Finesse maxi | 52 |
| Taux de chute mini | -- |
| Nb sièges | 1 |
| Structure | Composite |
AUTRES INFORMATIONS
| Constructeur(s) |
| ||||||
| Infos techniques | Empennage en T. | ||||||
| Histoire résumée | De Sonja Englert (Caro Engineering) : "The SB-14 is a high performance glider of the 18-m class. The initial wing structure, built from carbon fiber using wet-layup and vacuum bagging, was designed by me using aeroelastic tailoring. The long, slender wing of a glider is particularly suitable to modify the elastic response of a wing by arranging the structure in a certain way. I wrote my own software (Fortran) to determine the influence of fiber angle in the laminate and placement of the spar on the loads the wings encounters when flying through a gust. In conventional designs, the bending of the wing under load may cause the wing to twist in a way that the angle of attack is increased, which in turn increases the lift and therefore the bending moment. To avoid this, the location of the shear center and the fiber angle can be optimized to decrease or even reverse this behavior. On the SB-14 this was used to decrease the bending moment of the wings, thus allowing lighter wing structure." | ||||||
| Liens personnalités | Pas de personnalité associée. | ||||||
| Compléments docs |
SOURCES DOCUMENTAIRES

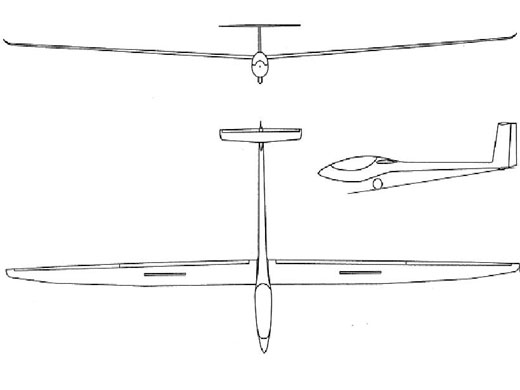

| Liens WEB | Site : Akaflieg Braunschweig . Texte + 4 photos + plan 3 vues + specs. (2009-10-31 CL) Site : Caro Engineering . Note + photo. (2018-04-04 CL) |
| Livres | Pas de livre référencé. |
MODÈLES RÉDUITS
 Kit Modellstudio CZ |
Fiche n° 1143 [Dernière mise à jour : 2018-04-04]
