EV-1K Fecske

DONNÉES GÉNÉRALES
Année du premier vol
(ou de design, si seul projet)		 1969
Pays Hongrie
Designer(s) PGE
Premier constructeur Esztergom Facility of Pest Area Machine Factory (PGE) (formerly Sportárutermelõ V., Esztergom)
Type d'appareil Planeur
Fonction Performance

SPÉCIFICATIONS TECHNIQUES
Envergure 15 m
Longueur 6.86 m
Hauteur--
Allongement18.87
Surface alaire11.92 m2
Profil aileFX 61-163 (emplanture et milieu) et FX 60-126 (saumon)
Masse à vide220 kg
Masse maxi350 kg
Charge alaire29.4 kg/m2
Vitesse mini67 km/h
Vitesse maxi270 km/h
Finesse maxi34 à 93 km/h
Taux de chute mini0.62 m/s à 70 km/h
Nb sièges1
StructureEntièrement métallique.

[via Hungarian Gliders]
[via Hungarian Gliders]

AUTRES INFORMATIONS

Constructeur(s)
ConstructeurConstruits
Esztergom Facility of Pest Area Machine Factory (PGE) (formerly Sportárutermelõ V., Esztergom)1
Nombre total de constructions1
Infos techniquesAérofreins en bord de fuite des ailes. Empennage en T.
Histoire résuméeIn 1964 it was decided by a group of young engineers of the factory's design bureau to create a performance glider, which would surpass in performance all previous Hungarian gliders. The design work had been started as a private venture, and the design was the runner up when the parent factory (Pest Area Machine Factory - PG) invited aircraft designs in 1965. The factory accepted the design to build, and the team, which started working at the beginning of 1967 on the production design, consisted of Lajos BENDE, Mihály KESSELYÁK, Pál KEREKES, Bálint MAGYAR, Ferenc MAJOR, György PAPP and Lajos TEKNYÕS. The glider first flew at September 18, 1969. After the test flights had been completed the Hungarian Glider Team got the glider for operational tests. In October, 1970 the wings of the glider were broken off in flight due to a severe pilot error. The glider was destroyed and the pilot lost his life. No more example was built.
The EV.1.K was certified for full aerobatics except negative loops.
Liens personnalités Pas de personnalité associée.

SOURCES DOCUMENTAIRES

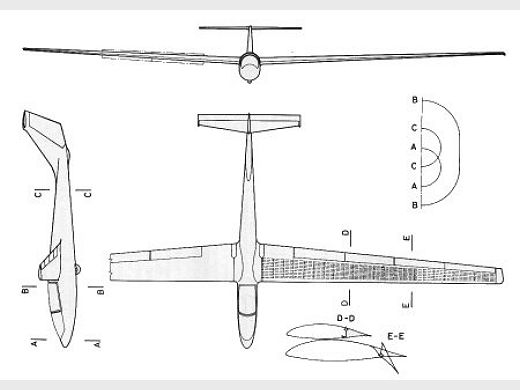

Liens WEBSite : Hungarian Gliders (site de Gábor Fekecs) . Histoire + photos + specs + plan 3 vues. (2010-06-03 CL)
LivresPas de livre référencé.

MODÈLES RÉDUITS

Pas de plan ou kit référencé.
Fiche n° 1676 [Dernière mise à jour : 2010-06-05]
