Mooney Dust Devil

DONNÉES GÉNÉRALES
Année du premier vol
(ou de design, si seul projet)
1958
Pays USA
Designer(s) MOONEY, Walt
Premier constructeur Projet non abouti
Type d'appareil Planeur
Fonction Performance

SPÉCIFICATIONS TECHNIQUES
Envergure 13.41 m
Longueur--
Hauteur--
Allongement14.75
Surface alaire12.17 m2
Profil aileNACA 4415
Masse à vide--
Masse maxi--
Charge alaire--
Vitesse mini--
Vitesse maxi--
Finesse maxi
Taux de chute mini--
Nb sièges1
StructureConstuction métallique et fibre de verre.

[Pas de photo connue]
[Soaring novembre-décembre 1958]

AUTRES INFORMATIONS

Constructeur(s)
ConstructeurConstruits
0
Nombre total de constructionsProjet non abouti
Infos techniquesSome of the design features are: all compound curves, under fuselage and wing leading edge (with integral ribs) to be fibreglas; an all-moving, anti-balance tabbed tail; and the use of P·K screws where possible.
Histoire résuméeThe Dust Devil design is the result of acute frustration suffered at the 1958 Torrey Pines Meet, conceived to fill a personal desire to soar with his own wings. Toward this end he has withdrawn from all other outside interests and pledged himself to concentrated work on the project. However, he would remind everyone that talk is cheap and the proof will be in the flying.
Walt is an MIT AES alumnus, now employed as an aeronautical engineer in Convair's preliminary design section.
Liens personnalités Pas de personnalité associée.

SOURCES DOCUMENTAIRES

Liens WEBPas de site référencé.
LivresPas de livre référencé.

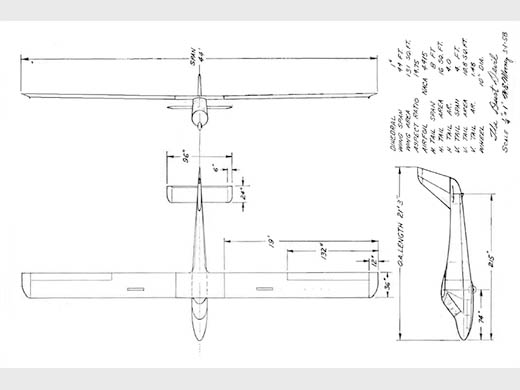

Autres sourcesSoaring novembre-décembre 1958 p 21, texte + plan 3 vues.

MODÈLES RÉDUITS

Pas de plan ou kit référencé.
Fiche n° 3283 [Dernière mise à jour : 2011-04-09]
