Neukom AN-66C Super Elfe
| DONNÉES GÉNÉRALES |
| Année du premier vol (ou de design, si seul projet) |
1973 |
| Pays | Suisse |
| Designer(s) | NEUKOM, Albert |
| Premier constructeur | Neukom (CH) |
| Type d'appareil | Planeur |
| Fonction | Performance |
| SPÉCIFICATIONS TECHNIQUES |
| Envergure | 23 m |
| Longueur | 8.1 m |
| Hauteur | 1.85 m |
| Allongement | 30.1 |
| Surface alaire | 16 m2 |
| Profil aile | Eppler 562/569 |
| Masse à vide | 420 kg |
| Masse maxi | 650 kg |
| Charge alaire | 33.1 kg/m2 |
| Vitesse mini | 60 km/h |
| Vitesse maxi | 270 km/h |
| Finesse maxi | 48 à 90 km/h |
| Taux de chute mini | 0.5 m/s à 70 km/h |
| Nb sièges | 1 |
| Ballast | 60 L |
| Structure | -- |
AUTRES INFORMATIONS
| Constructeur(s) |
| ||||||
| Infos techniques | Aile en 3 parties, de 23m (75 ft 5.5 in) d'envergure, and the aerofoil flaps are chain-operated by a crank in the cockpit and can either be fully extended or fully retracted, no intermediate position being possible; when fully extended or retracted the wing profile is changed so as to result in a continuous Eppler aerofoil section. A tank to contain 132 lb of water ballast is situated in the leading edge of each wing centre section, the latter being 21 ft 4 in in length and the two outer panels 27 ft 0.75 in each. The single-spar wings have riveted duralumin double-T spars, and plywood/balsa/plywood sandwich outer skins formed by vacuum pressing; Schempp-Hirth air brakes are fitted. Landing gear consists, as it did on the AN-66-2, of a retractable monowheel and tailskid. The wing area is increased from 172.2sq ft with the flaps in, to 206.7sq ft with flaps extended, when the aspect ratio is 27.6 compared to 33.1 with the flaps in. Empennage conventionnel en croix. | ||||||

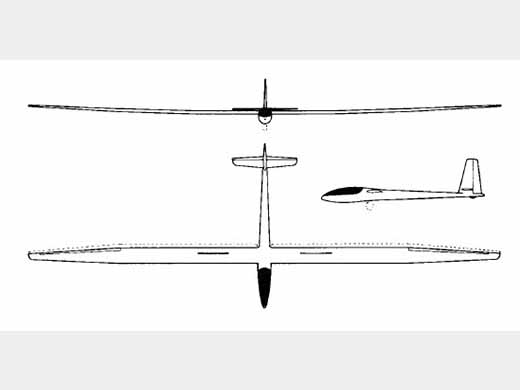

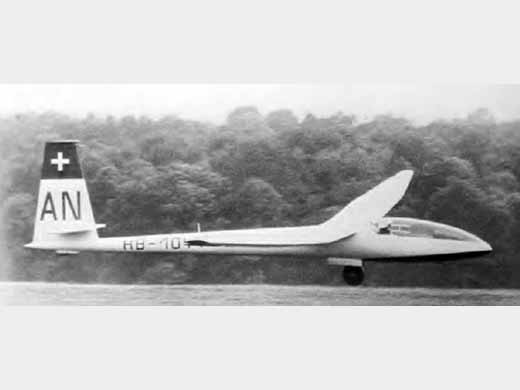

| Histoire résumée | The AN-66C Super Elfe is a development of the AN-66-2 with the same fuselage but with an entirely new variable-geometry wing with a special aerofoil flap that can be extended to increase the wing area by about 20%; a conventional tail unit with a low-set tailplane, similar to that of the Standard Elfe S-3, replaces the AN-66-2's V-tail. Flight tests of the prototype AN-66C began at Butzweilerhof in Germany on 11 September 1973. | ||||||
| Liens personnalités | Pas de personnalité associée. |
SOURCES DOCUMENTAIRES
| Liens WEB | Site : All-Aero.com . Note + photo + specs. (2019-05-27 CL) |
| Livres | Pas de livre référencé. |
MODÈLES RÉDUITS
| Pas de plan ou kit référencé. |
Fiche n° 4385 [Dernière mise à jour : 2019-05-27]
