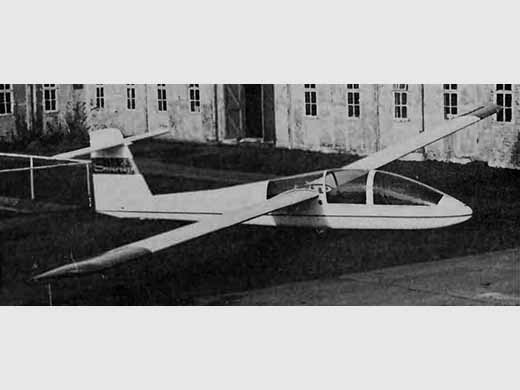

Yorkshire Sailplanes YS-53 Sovereign

DONNÉES GÉNÉRALES
Année du premier vol
(ou de design, si seul projet)
1969
Pays Angleterre
Designer(s) Slingsby Sailplanes Ltd
Premier constructeur Yorkshire Sailplanes, Melmurby Industrial Estate, Ripon, Yorks (GB)
Type d'appareil Planeur
Fonction Entraînement

SPÉCIFICATIONS TECHNIQUES
Envergure 16.96 m
Longueur 7.62 m
Hauteur--
Allongement15.9
Surface alaire18 m2
Profil aileWortmann FX 61-184
Masse à vide354 kg
Masse maxi580 kg
Charge alaire32.2 kg/m2
Vitesse mini--
Vitesse maxi228 km/h
Finesse maxi30
Taux de chute mini0.76 m/s
Nb sièges2
StructureMétallique

[Jane's All the World Aircraft 1975]
3 vues des Slingsby T-53 [British gliders and sailplanes]

AUTRES INFORMATIONS

Constructeur(s)
ConstructeurConstruits
Yorkshire Sailplanes, Melmurby Industrial Estate, Ripon, Yorks (GB)3
Nombre total de constructions3
Infos techniquesEmpennage en T.
Histoire résuméeThe Slingsby T-53 was the first all-metal sailplane designed and built in the United Kingdom. It was designed and built by Slingsby Sailplanes for evaluation by the Royal Air Force. The construction of the prototype was started in June 1966, with the first flight on 9 March 1967 at Wombleton. The Royal Air Force ordered 40 gliders, and the second T-53 was evaluated by them for use by the Air Training Corps. The order was cancelled following evaluation and the disruption caused when the Slingsby factory was destroyed by fire in November 1968. Following the fire Slingsby built a small batch of modified T-53B aircraft for the civil market which it named the Phoenix, and in 1969 sold the rights of the design and jigs to Yorkshire Sailplanes. Yorkshire Sailplanes produced an improved version with both nose and centre of gravity tow hooks known as the YS-53 Sovereign. Yorkshire Sailplanes subsequently went bankrupt in 1975.
Liens personnalités Pas de personnalité associée.
Exemplaires existants
Immatriculé : G-DCXV (En état de vol), localisation : Gliding Heritage Centre (GB)
Compléments docs

SOURCES DOCUMENTAIRES

Liens WEBSite : AviaDejaVu . Photo. (2018-10-02 CL)
Site : Gliding Heritage Centre . YS-53 n° 3 G-DCXV "The Beast". (2018-10-02 CL)
Site : Airport Data . Photo G-DCUD. (2018-10-02 CL)
LivresPas de livre référencé.
Autres sourcesJane's All the World Aircraft 1975. Photo

MODÈLES RÉDUITS

Pas de plan ou kit référencé.
Fiche n° 717 [Dernière mise à jour : 2018-10-02]
