DONNÉES GÉNÉRALES |
Année du premier vol (ou de design, si seul projet) |
1970 |
Pays | USA |
Designer(s) | PETERSON, Max A. |
Premier constructeur | |
Type d'appareil | Planeur |
Fonction | -- |
SPÉCIFICATIONS TECHNIQUES |
Envergure | 15 m |
Longueur | -- |
Hauteur | -- |
Allongement | -- |
Surface alaire | 12 m2 |
Profil aile | NACA 64(3)-618 |
Masse à vide | 260 kg |
Masse maxi | 365 kg |
Charge alaire | -- |
Vitesse mini | -- |
Vitesse maxi | -- |
Finesse maxi | |
Taux de chute mini | -- |
Nb sièges | 1 |
Structure | Tout métal, sauf la moitié inférieure du fuselage en fibre de verre. |
Constructeur(s) |
| ||||||
Infos techniques | -- | ||||||

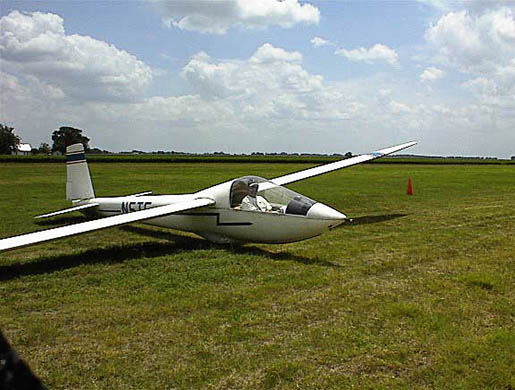

Histoire résumée | The J-4 Javelin, a single ship capable of carrying a child behind the pilot features an aileronless wing with spoilers for glidepath control and ?spoilerons? for roll control, the latter causing almost no adverse yaw. The wing spar is a chem-milled tube, and the airplane uses very few normal rivets, most fastenings being cost saving pop rivets. The fuselage is built around a steel tube frame, with a lower fiberglass shell bonded to aluminum sheet wrapped over the deck. The Javelin first flew in 1969. ATC. | ||||||
Liens personnalités | Pas de personnalité associée. |

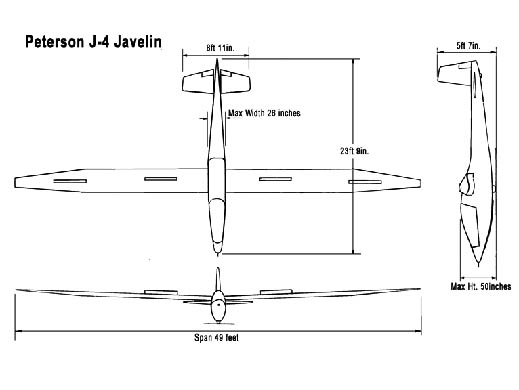

Liens WEB | Site : Scale Soaring UK . Texte + 14 photos + plan 3 vues + specs. (2012-04-23 CL) |
Livres | Pas de livre référencé. |
