Scheibe SF-24 Motorspatz

DONNÉES GÉNÉRALES
Année du premier vol
(ou de design, si seul projet)
1957
Pays Allemagne
Designer(s) SCHEIBE, Egon
Premier constructeur Scheibe Flugzeugbau, Dachau (DE)
Type d'appareil Motoplaneur
Fonction Entraînement

SPÉCIFICATIONS TECHNIQUES
Envergure 14.1 m
Longueur--
Hauteur--
Allongement16.7
Surface alaire11.8 m2
Profil aileMü 14 %
Masse à vide225 kg
Masse maxi345 kg
Charge alaire29 kg/m2
Vitesse mini--
Vitesse maxi--
Finesse maxi20 à 73 km/h
Taux de chute mini0.8 m/s à 70 km/h
Nb sièges1
StructureFuselage en tubes d'acier soudés et entoilé. Ailes et empennage bois et toile.

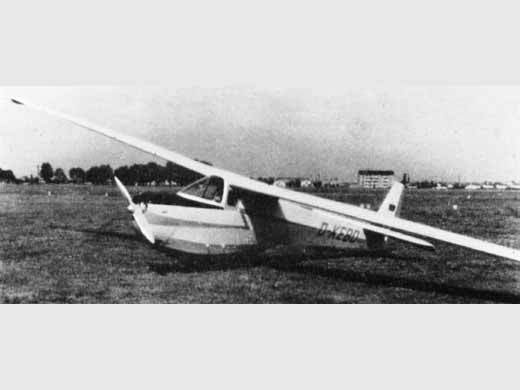

Jane's All the World Aircraft 1966]

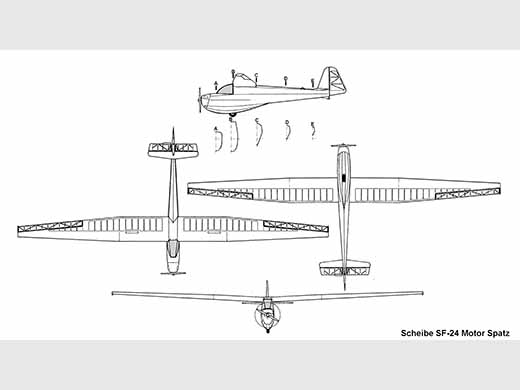

[Dessin Richard Ferrière]

AUTRES INFORMATIONS

Constructeur(s)
ConstructeurConstruits
Scheibe Flugzeugbau, Dachau (DE)60
Nombre total de constructions60
Infos techniquesL'appareil était équipé de volets. Moteur Hirth F-10 4 cylindres 27 CV (20 kW)
Version SF-24B : moteur Solo 560A 25 CV
Histoire résuméePremier vol du motoplaneur Motorspatz en 1960, suivi par les modèles SF-24A and SF-24B.
Liens personnalitésSCHEIBE, Egon (Allemagne)
Exemplaires existants
Immatriculé : D-KABE (En état de vol), localisation inconnue.
Immatriculé : D-KEBI (En restauration), localisation : Hungary
Immatriculé : D-KECU, localisation inconnue.
Immatriculé : D-KGRA (En état de vol), localisation : Kiskunlacháza Airport LHKK (Budapest, Hungary)
Immatriculé : G-DZFP, localisation inconnue.
Immatriculé : SE-TFY (En exposition), localisation : Ållebergs Segelflygsmuseums, Falköping (SE)
Compléments docs

SOURCES DOCUMENTAIRES

Liens WEBSite : AviaDejaVu . 3 photos. (2017-06-09 CL)
Site : Breisgauer-Modellflieger e.V. . Construction d'un Motorspatz par Gerhard Böhme . (2017-06-09 CL)
Site : Christian Koch Info . . (2017-06-09 CL)
Site : Wildberg Air . 5 photos. (2017-06-09 CL)
Site : YouTube . Collaudo Motorspatz con motore Polini Thor. Vidéo 3' 30. (2017-06-09 CL)
Site : RC Groups . SF-24 MotorSpatz motorglider. (2017-06-09 CL)
Site : Richard Ferrière . 3 vues. (2017-06-09 CL)
Site : Forum RC Network . . (2017-06-09 CL)
LivresDie schönsten Motorsegler
par GASSEBNER, Bern Jürgen (2000) [p. 49-51. Note + 4 photos + specs].
Autres sourcesSaid, Bob: 1983 Sailplane Directory, Soaring Magazine, page 126. Soaring Society of America, novembre 1983
