DONNÉES GÉNÉRALES |
Année du premier vol (ou de design, si seul projet) |
1970 |
Pays | USA |
Designer(s) | SCHREDER, Richard E. |
Premier constructeur | HP Aircraft, LLC (Bob Kuykendall), Murphys, CA (USA) |
Type d'appareil | Planeur |
Fonction | Performance |
SPÉCIFICATIONS TECHNIQUES |
Envergure | 15 m |
Longueur | 6.71 m |
Hauteur | -- |
Allongement | 21.5 |
Surface alaire | 10.5 m2 |
Profil aile | Wortmann 67-150 |
Masse à vide | 199 kg |
Masse maxi | 425 kg |
Charge alaire | 31.8 kg/m2 |
Vitesse mini | -- |
Vitesse maxi | 240 km/h |
Finesse maxi | 38 à 93 km/h |
Taux de chute mini | 0.64 m/s à 80.5 km/h |
Nb sièges | 1 |
Ballast | 91 L |
Structure | Métallique sauf les nervures d'ailes en mousse et la poutre de queue en composite fibre de verre. |
Constructeur(s) |
| ||||||

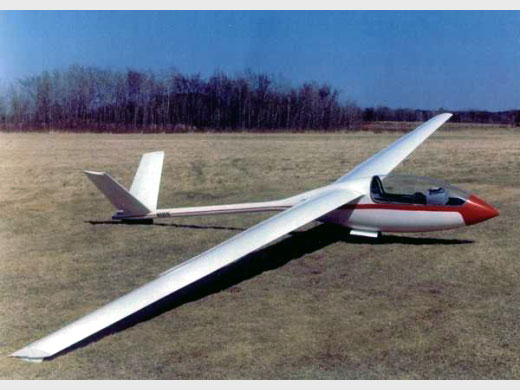

Infos techniques | It is an innovative pod-and-boom design which originally was intended to convert into various configurations, with wingspans of from 13 to 20 meters being matched with booms of suitable lengths, two-place pods, etc. In the event, Dick decided to go with only the basic 15 meter sing- seat version, which features a fiberglass cockpit pod and a six- inch-diameter aluminum tube for the boom. These were supplied for the same cost as a conventional fuselage, but required several hundred fewer hours to build. Ailes du HP-16 puis du HP-18. Empennage en V. Charge alaire : 31,8 to 40,5 Kg/m2 | ||||||
Histoire résumée | Richard (Dick) SCHREDER interrompt momentanément la série de ses HP pour cette création désignée sous ses propres initiales, et exprimer les dimensions dans le système métrique. Il s'agit d'un planeur produit en kit pour une construction amateur. | ||||||
Liens personnalités | Pas de personnalité associée. |

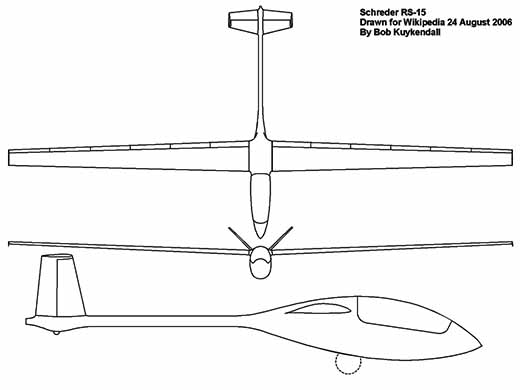

Liens WEB | Site : Schreder Sailplane Designs . A Resource for Builders and Owners. (2009-12-29) Site : Soar Idaho . Note + specs. (2015-01-29 CL) Site : Sailplane Directory . Note + photo + specs. (2015-01-29 CL) Site : Soar Idaho . Page RS-15. (2015-01-29 CL) Site : Wikipedia . Texte + plan 3 vues + specs. (2015-01-29 CL) |
Livres | Jane's all the world's aircraft 1984-85 par TAYLOR, John W. R. (1984) [Note + photo + specs]. |
