DONNÉES GÉNÉRALES |
Année du premier vol (ou de design, si seul projet) |
1938 |
Pays | URSS |
Designer(s) | ANTONOV, Oleg Konstantinovitch |
Premier constructeur | |
Type d'appareil | Planeur |
Fonction | Entraînement |
SPÉCIFICATIONS TECHNIQUES |
Envergure | 16.24 m |
Longueur | 6.4 m |
Hauteur | 1.55 m |
Allongement | 22.5 |
Surface alaire | 12.5 m2 |
Profil aile | R-III |
Masse à vide | -- |
Masse maxi | 420 kg |
Charge alaire | -- |
Vitesse mini | -- |
Vitesse maxi | -- |
Finesse maxi | 30.5 |
Taux de chute mini | -- |
Nb sièges | 1 |
Ballast | 120 L |
Structure | Bois |
Constructeur(s) |
| ||||||
Infos techniques | The RF-7 was of stressed skin, semi-monocoque, and wooden construction. The wings of the RF-7 were in three parts. The tips were fitted on to the two-spar, permanently installed, centre section. The fuselage was of aerodynamic form with the canopy blending into its line. The single wheel undercarriage could be retracted and the undercarriage compartment's doors shut. Behind the pilot's seat was a tank for 120 litres of water ballast. In spite of minimum empty weight, it was so strong that it was cleared for full acrobatics. Le réservoir de ballast était disposé derrière le siège du pilote. | ||||||
Histoire résumée | Le Rot Front 7 (Étoile rouge 7) d'Oleg ANTONOV compte parmi les meilleurs planeurs de grande performance de son époque. Ce planeur s'est adjugé plusieurs records nationaux soviétiques, et deux records du monde, dont, en 1939, le record du monde de distance féminin d'Olga KLEPIKOVA (plus de 749 km). | ||||||
Liens personnalités | Pas de personnalité associée. | ||||||
Remarques | Рот Фронт (Rot Front) = étoile rouge |

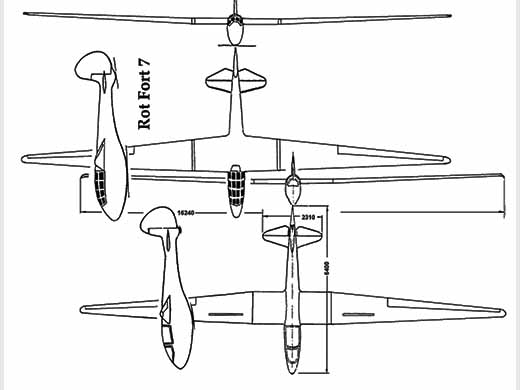

Liens WEB | Site : Site Coin de Ciel (Уголок неба) . Texte + 1 photo + specs. (2009-11-01 CL) Site : Scale Soaring UK . Note + plan 3 vues + specs. (2012-04-23 CL) |
Livres | Planery CCCP par KRASILSHCHIKOV, A. P. (1991) [p. 229. Specs]. Sailplanes 1920-1945 par SIMONS, Martin (2001) [p. 246. ]. |
Autres sources | Russian gliders, par Chris Wills, VGC News n° 130 (été 2010).Mention. |
