DONNÉES GÉNÉRALES |
Année du premier vol (ou de design, si seul projet) |
1971 |
Pays | USA |
Designer(s) | ZIMMERMANN, A. |
Premier constructeur | |
Type d'appareil | Planeur |
Fonction | -- |
SPÉCIFICATIONS TECHNIQUES |
Envergure | -- |
Longueur | -- |
Hauteur | -- |
Allongement | -- |
Surface alaire | -- |
Profil aile | Wortmann |
Masse à vide | -- |
Masse maxi | -- |
Charge alaire | -- |
Vitesse mini | -- |
Vitesse maxi | -- |
Finesse maxi | |
Taux de chute mini | -- |
Nb sièges | 1 |
Structure | -- |
Constructeur(s) |
| ||||||
Infos techniques | -- | ||||||

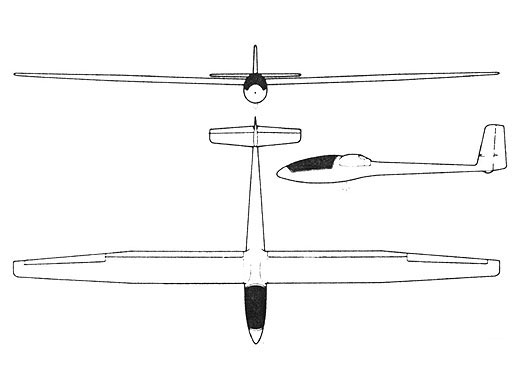

Histoire résumée | The C-70 which first flew in 1971, is a 15-meter racing class ship of molded fiberglass construction. The fuselage incorporates a tubular-steel framework that ties together the landing gear, wing fittings and a protective cage around the pilot. Differing in a number of respects from the prototype, the production version emerged with a Wortmann airfoil, full-span flaps, no brakes and a conventional horizontal tail. The 90-degree flaps allow a very steep landing approach. The ship also features retractable gear, in-flight adjustable rudder pedals, adjustable seat-back and (optional) 91 kg./ 200 lb. Water ballast. Production ceased in 1974. | ||||||
Liens personnalités | Pas de personnalité associée. | ||||||
Compléments docs |
Liens WEB | Site : Alex Sailplane Directory . Note + 1 photo + specs. (2009-11-06 CL) Site : National Soaring Museum . 8 photos de l'exemplaire du NSM. (2010-05-27 CL) |
Livres | Sailplanes 1965-2000 par SIMONS, Martin (2005) [p. 240. ]. Sailplanes 1965-2000 par SIMONS, Martin (2005) [p. 240. ]. |
