DONNÉES GÉNÉRALES |
Année du premier vol (ou de design, si seul projet) |
1974 |
Pays | Allemagne |
Designer(s) | KAISER, Rudolf |
Premier constructeur | Alexander Schleicher GmbH |
Type d'appareil | Planeur |
Fonction | Entraînement |
SPÉCIFICATIONS TECHNIQUES |
Envergure | 16 m |
Longueur | 6 m |
Hauteur | 1.68 m |
Allongement | 19.7 |
Surface alaire | 13 m2 |
Profil aile | Emplanture : NACA 63-3-618 Milieu : NACA 63-3-614 (avec le bord d'attaque modifié par Wortmann) modification) |
Masse à vide | 215 kg |
Masse maxi | 335 kg |
Charge alaire | -- |
Vitesse mini | -- |
Vitesse maxi | 200 km/h |
Finesse maxi | 34 |
Taux de chute mini | 0.62 m/s |
Nb sièges | 1 |
Structure | Fuselage en tubes d'acier soudés et entoilage. Ailes en bois et toile. |
Constructeur(s) |
| ||||||
Infos techniques | The Schleicher ASK 18 is a single-seat sailplane that was built by the German manufacturer Alexander Schleicher GmbH & Co. It was designed to be a sturdy aircraft for inexperienced solo pilots and so uses a simple and rugged construction and has docile handling characteristics.The fuselage was derived from the Ka 8 and use welded steel tube and spruce longerons. It is covered in fabric. The wings are from the Ka 6E but with 16-metre span. They have a single wooden spar. The rear part of the wing is fabric-covered and the ailerons are plywood-covered. The tailplane came from the K 10; the fin and tailplane are plywood-covered and the rudder and elevators are fabric covered. A Flettner trim tab is fitted to the elevator. Only the nose cone is glass-fibre. The main-wheel is fixed and has a brake. There is a tail-skid but no nose-skid. The Schempp-Hirth airbrakes extend above and below the wing. | ||||||
Histoire résumée | Dessiné par Rudolf KAISER, ce planeur fut le dernier produit par A. Schleicher GmbH en construction traditionnelle (tube et toile), alors que des planeurs contemporains, comme le the Grob G-102 Astir, étaient déjà construits en fibre et résine. Le premier vol a eu lieu en octobre 1974. Une version, l'ASK-18B, a été produite avec une envergure réduite à 15 mètres. Lorsque la production a cessé en 1977, 38 ASK-18 avaient été construits, ainsi que 9 ASK-18B et un nombre inconnu de machines en kit. Une série de 8 appareils, les ASK-18 AR, a été produite en Argentine. | ||||||
Liens personnalités | Pas de personnalité associée. | ||||||
Exemplaires existants | |||||||
Pack(s) photos | Immatriculation : G-CJSZ. Photographié par Chris Williams () sur Scale Soaring UK 17 photos, 1,7 Mo |

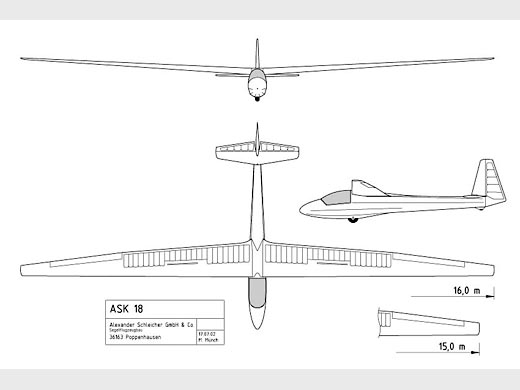

Liens WEB | Site : Wikipedia (en anglais) . Note + specs. (2011-03-26 CL) Site : Wikipedia (en allemand) . Note + specs. (2011-03-26 CL) Site : Alexander Schleicher . Plan 3 vues. (2011-03-26 CL) Site : Scale Soaring UK . Nombreuses photos + specs. (2011-03-26 CL) Site : Alex Sailplane Directory . Note + photo + specs. (2011-03-26 CL) |
Livres | Rhön-Adler par SELINGER, Peter F. (2003) [p. 127-129. Texte + 6 photos + plan 3 vues + specs]. |
|
