Messerschmitt S-16B Betti

DONNÉES GÉNÉRALES
Année du premier vol
(ou de design, si seul projet)
1924
Pays Allemagne
Designer(s) MESSERSCHMITT, Wilhelm Emil
Premier constructeur Flugzeugbau Messerschmitt, Bamberg (DE)
Type d'appareil Motoplaneur
Fonction Expérimental

SPÉCIFICATIONS TECHNIQUES
Envergure 14.4 m
Longueur 5 m
Hauteur--
Allongement--
Surface alaire14 m2
Profil aile--
Masse à vide--
Masse maxi--
Charge alaire--
Vitesse mini--
Vitesse maxi--
Finesse maxi
Taux de chute mini--
Nb sièges2
StructureBois et toile

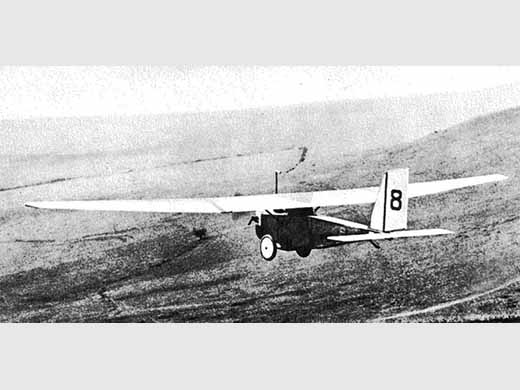

Le S-16A Bubi en vol à la ¨Wasserkuppe
[Pas de plan 3 vues connu]

AUTRES INFORMATIONS

Constructeur(s)
ConstructeurConstruits
Flugzeugbau Messerschmitt, Bamberg (DE)1
Nombre total de constructions1
Infos techniquesBiplace. Moteur Douglas de 22,6 CV (16,6 kW).
Histoire résuméeFirst flown in 1924, powered gliders, the S16a and S16b incorporated chain drive, and were entered in the annual Rhon gliding competition of 15 to 31 August 1924.
11/15/2014. Remarks by Johan Visschedijk: "The fifth Rhön gliding competition, held in late August 1924, included for the first time a tender for motor gliders and light aircraft. Willy Messerschmitt, who had founded in late 1923 the Flugzeugbau Messerschmitt at Bamberg, Germany, took part in this competition with two new aircraft. Already in June 1924, Messerschmitt had his first motor glider prototype demonstrated by pilot Seywald, the S 15, powered by a 30.5 cu.in (500 cu.cm) 3.5 hp Douglas H.O. Twin motorcycle engine, achieving flights up to 45 min and and an altitude of 1,969 ft (600 m).
For the competition Willy Messerschmitt introduced the single-seat S 16a Bubi and the two-seat S 16b Betti (named after respectively a brother and a sister). Both planes cleared well through the technical performance test and received a preliminary approval to compete. The competition pilot Captain Seywald was without luck, the S 16a had a broken propeller and suffered a total loss, the S 16b had to make an emergency landing due to broken transmission chain and was withdrawn."
Liens personnalités Pas de personnalité associée.
RemarquesBetti était l'une des soeurs de Willy Messerschmitt.

SOURCES DOCUMENTAIRES

Liens WEBSite : Coin de Ciel [Уголок неба] . Texte + 2 photos. (2016-08-13 CL)
Site : 1000 Aircraft Photos . Note + photo. (2016-08-13 CL)
LivresPas de livre référencé.

MODÈLES RÉDUITS

Pas de plan ou kit référencé.
Fiche n° 2981 [Dernière mise à jour : 2016-08-13]
