Libis 17

Autre nom (ou nom en langue originelle) : Libis KB-17
Année du premier vol
(ou de design, si seul projet)
Pays Yougoslavie
Designer(s) PRHAVC, Jože
Premier constructeur LIBIS ((Letalski Institut Branko Ivanus Slovenia) Ljubljana (Slovénie)
Type d'appareil Planeur
Fonction Performance

Envergure 17 m
Longueur 7.4 m
Hauteur 2.73 m
Surface alaire22.1 m2
Profil aileNACA 63-3-618
Masse à vide335 kg
Masse maxi515 kg
Charge alaire--
Vitesse mini59 km/h
Vitesse maxi230 km/h
Finesse maxi26 à 93 km/h
Taux de chute mini0.86 m/s à 75 km/h
Nb sièges2

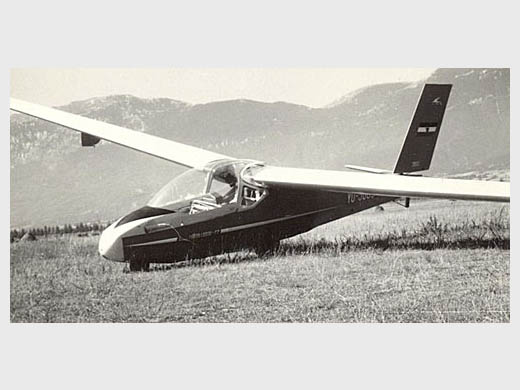

[via 2R Fly]

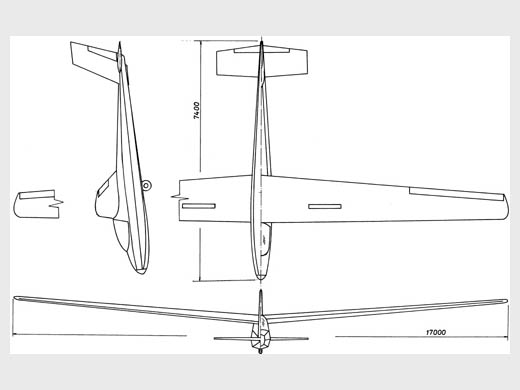

[via 2R Fly]


LIBIS ((Letalski Institut Branko Ivanus Slovenia) Ljubljana (Slovénie)--
Nombre total de constructions--
Infos techniques--
Histoire résuméeThe Libis-17 was a Yugoslavian two-seat tandem high-performance training sailplane first flown in 1961. The Libis-17 was a high-wing cantilever monoplane of mixed construction and a top speed of 222 kmh in smooth air.
The LIBIS-17, originally known as the LIBIS KB-17, was designed to provide tandem seat training in advanced gliding flight, including aerobatics and cloud flying, as well as solo experience to gold and silver C standard as a single seater. It had a high wing of 5° dihedral, built around a single spar. The leading edge was a plywood torsion box, supported by Styrofoam, and the rest of the wing was fabric covered. The ailerons were of the Frise type, wooden, foam filled and fabric covered. It had Hütter type plate spoilers just behind the spar. Both vertical and horizontal rear stabilizers were all-moving, single piece surfaces, fitted with servo tabs. Both were wooden structures, near-rectangular in shape, with Styrofoam filling.[1]

The fabric covered fuselage had a steel tube structure. The wing was mounted on a pylon which formed the rear of the cockpit. This seated two in tandem, under a framed, forward hinged, single piece canopy. A transparency in the wing leading edge assisted the upwards visibility from the rear seat. Aft of the wing the fuselage was slender and of rectangular cross-section. The LIBIS-17 had a bicycle undercarriage with a single mainwheel, fitted with brakes, and a smaller nosewheel.[1]
The prototype LIBIS-17 first flew in October 1961. The first production aircraft followed in June 1963 and 12 had been built by the following Spring, with production continuing.[1] There is photographic evidence of a motorised version, with an engine and propeller on a mast above the wing.[2]
Liens personnalités Pas de personnalité associée.
Exemplaires existants
Immatriculé : YU-5069 (En stockage), localisation : Musée de Belgrade
Compléments docs


Liens WEBSite : Probert Encuclopediae . Mention + photo. (2011-02-09 CL)
Site : Wikipedia (en anglais) . Note + specs. (2011-02-09 CL)
Site : 2R Fly . Note + 5 photos + plan 3 vues. (2011-02-09 CL)
LivresPas de livre référencé.


Pas de plan ou kit référencé.
