De Havilland Sparrow

DONNÉES GÉNÉRALES
Année du premier vol
(ou de design, si seul projet)
1956
Pays Canada
Designer(s) CZERWIŃSKI, Wacław
Premier constructeur De Havilland Aircraft Co, Toronto, Canada
Type d'appareil Planeur
Fonction Initiation

SPÉCIFICATIONS TECHNIQUES
Envergure 11.7 m
Longueur 6.86 m
Hauteur--
Allongement8.6
Surface alaire15.87 m2
Profil aile--
Masse à vide107 kg
Masse maxi206 kg
Charge alaire13.3 kg/m2
Vitesse mini40 km/h
Vitesse maxi160 km/h
Finesse maxi16
Taux de chute mini1 m/s
Nb sièges1
StructureBois et toile.

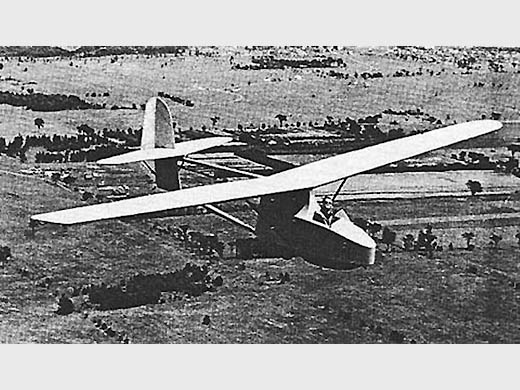

[origine inconnue, via Michel Blanchard]

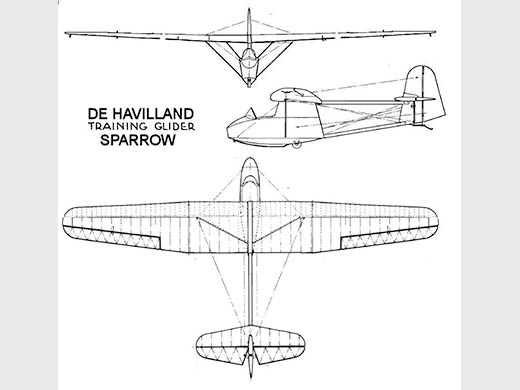

Origine inconnue [via Michel Blanchard]

AUTRES INFORMATIONS

Constructeur(s)
ConstructeurConstruits
De Havilland Aircraft Co, Toronto, Canada--
Nombre total de constructions--
Infos techniquesVersion canadienne du Salamandra.
Histoire résuméeVersion canadienne du Salamandra, dessiné par Wacław CZERWIŃSKI lorsqu'il se réfugia au Canada, où il fut embauché par De Havilland Aircraft Co.

The De Havilland Sparrow is an interesting ship in that it is one of the few club-designed ships to actually get built. Had there been sufficient demand, it would have been put into quantity production.
The Sparrow looks somewhat like a cross between the classic primary and a secondary which it actually is. It was designed in 1942 by member of the De Havilland Aircraft Company at Toronto, who had form a glider club under the leadership of Wacław CZERWIŃSKI, a refugee polish glider pilot and designer. Czerwinski departed from the traditional European pattern and design the Sparrow to conform to Canadian condiIions. The tail was supported by booms and was wire-bracthe manner of primaries, but the wing was a semi-cantilever type, stru-braced and tapered in plan-form.
Construction was entirely of wood. The surfaces were fabric covered while the pod was plywood covered. Span was 38'6" and length was 22'6". Emply weight was 280 pounds and gross weight was 460 pounds.
Th wing loading was quite light, 2,7 pounds per square foot. Gliding ratio was 16 to 1 which made the ship a very good secondary. From all available reports the Sparrow was a good soaring machine and almost in a class with the world-standard Grünau Baby.
Liens personnalitésCZERWIŃSKI, Wacław (Pologne)

SOURCES DOCUMENTAIRES

Liens WEBPas de site référencé.
LivresPas de livre référencé.
Autres sourcesSoaring janvier-février 1947 p 11. Texte + photo + specs.
Soaring mars-avril 1956 p 16. Note + 2 petites photos.

MODÈLES RÉDUITS

Pas de plan ou kit référencé.
