Hoffmann H-38 Observer

Autre nom (ou nom en langue originelle) : Hoffmann H-38 Visionar
DONNÉES GÉNÉRALES
Année du premier vol
(ou de design, si seul projet)
1984
Pays Allemagne
Designer(s) HOFFMANN, Wolf
Premier constructeur Projet non abouti
Type d'appareil Motoplaneur
Fonction Expérimental

SPÉCIFICATIONS TECHNIQUES
Envergure 16.1 m
Longueur 7.25 m
Hauteur--
Allongement16.8
Surface alaire15.33 m2
Profil aileFX-60-137
Masse à vide550 kg
Masse maxi850 kg
Charge alaire--
Vitesse mini--
Vitesse maxi205 km/h
Finesse maxi28
Taux de chute mini--
Nb sièges2
Structure--

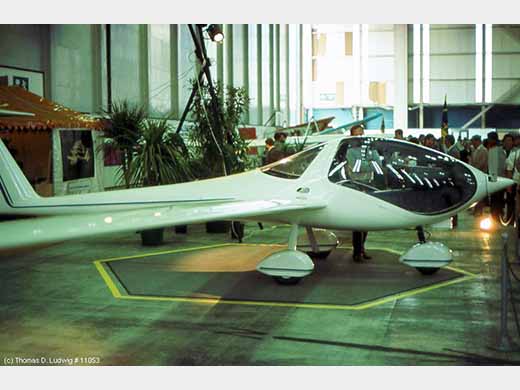

Modèle échelle 1 du Hoffmann Visonar / H 38 Observer - ILA 1984 Hannover, Allemagne [thomas B. Ludwig - Wikipedia]

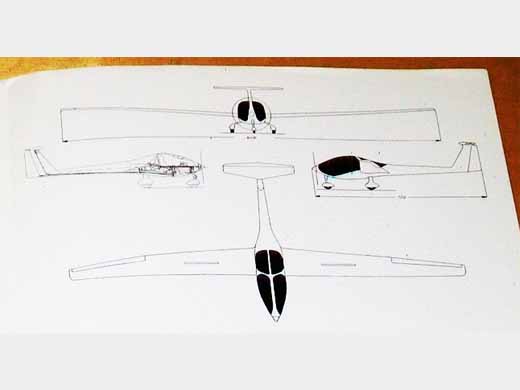

Extrait d'une brochure du H-38

AUTRES INFORMATIONS

Constructeur(s)
ConstructeurConstruits
Wolf Hoffmann Flugzeugbau (AT)0
Nombre total de constructionsProjet non abouti
Infos techniquesDérivé du Hoffmann Dimona. Biplace côte à côte.
Moteur Limbach L2000-EB1 4-cylindres refroidissement par air, 59.7 kW (80.1 CV).
Vitesse de croisière : 190 km/h. Rayon d'action 1150 km.
The Observer's design aim was long endurance with minimal fuel burn, combined with extremely good vision from the cockpit. To obtain this, the conventional tractor propeller is driven by a mid-mounted engine placed behind the two side-by-side seats. This location for the power-plant was intended to leave the nose clear of obstruction. Since the canopy glazing extends to the crew's feet, vision was expected to be far better than from a conventional aircraft, and not far from that from some helicopters.
The wings, rear fuselage and T-tail were identical to those of the Dimona, but with wing span increased. A choice of two engine options was proposed and provisions for versions with extended range were made for both options.
Histoire résuméeA l'exposition ILA 1984 à Hannovre, Wolf Hoffmann a présenté une maquette grandeur nature d'un nouveau projet dérivé du motoplaneur Dimona, appelé Hoffmann Visonar, avant qu'il ne soit renommé H-38 Observer.
Le projet n'aboutit pas en raison de désaccords avec son partenaire autrichien Hoffmann Aircraft et l'impossibilité de trouver un constructeur.
Liens personnalités Pas de personnalité associée.
Remarques[info Richard Barthel, 16/06/2016]

SOURCES DOCUMENTAIRES

Liens WEBSite : Wikipedia . Note + photo + specs. (2016-06-13 CL)
Site : eBay . Brochure de 4 pages. (2016-06-17 CL)
LivresPas de livre référencé.
Autres sourcesHoffmann seeks producer, par Alan Postlethwaite, Flight International, 27 juin 1987 p 63-64.

MODÈLES RÉDUITS

Pas de plan ou kit référencé.
