DONNÉES GÉNÉRALES |
Année du premier vol (ou de design, si seul projet) |
1949 |
Pays | Roumanie |
Designer(s) | ŞILIMON, Iosif |
Premier constructeur | Uzinele de reparaţii material volant (URMV-3), Braşov |
Type d'appareil | Planeur |
Fonction | Entraînement |
SPÉCIFICATIONS TECHNIQUES |
Envergure | 12.3 m |
Longueur | 6.54 m |
Hauteur | 1.56 m |
Allongement | 10.3 |
Surface alaire | 14.7 m2 |
Profil aile | Emplanture Göttingen 535, milieu Göttingen 535, saumon Göttingen 676 |
Masse à vide | 160 kg |
Masse maxi | 250 kg |
Charge alaire | 17 kg/m2 |
Vitesse mini | 42 km/h |
Vitesse maxi | 180 km/h |
Finesse maxi | 20 à 69 km/h |
Taux de chute mini | 0.77 m/s à 53 km/h |
Nb sièges | 1 |
Structure | Fuselage bois et revêtement en contreplaqué. Ailes bois et toile. |
Constructeur(s) |
| ||||||
Infos techniques | -- | ||||||
Histoire résumée | -- | ||||||
Liens personnalités | ŞILIMON, Iosif (Roumanie) | ||||||
Remarques | Date 1er vol selon "The World's Sailplanes II" : 14 aout 1959 | ||||||
Compléments docs |

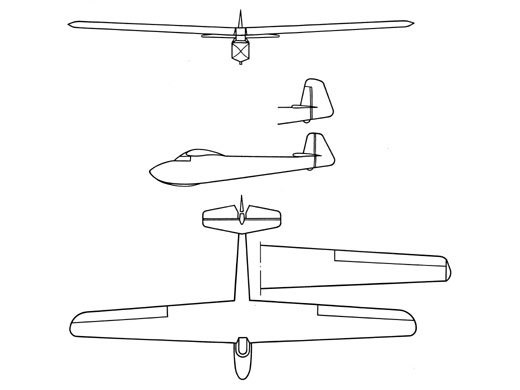

Liens WEB | Site : Flickr - Planorismul in Romania . 2 photos + plan 3 vues. (2018-11-05 CL) |
Livres | Romanian Aeronautical Constructions 1905-1974 par GUDJU, Ion & LACPBESCI, Gheroghe & IONESCU, Ovidiu (1974) [p. 288-289, 384. Note + photo + plan 3 vues + specs]. The World's Sailplanes II par OSTIV (1963) [p. 178-179. Photo + 3-vues + specs + notes]. |
