Gotha P-50-2

DONNÉES GÉNÉRALES
Année du premier vol
(ou de design, si seul projet)
1939
Pays Allemagne
Designer(s) KALKERT, Albert
Premier constructeur Projet non abouti
Type d'appareil Planeur
Fonction Militaire

SPÉCIFICATIONS TECHNIQUES
Envergure 22 m
Longueur 14.25 m
Hauteur 5.54 m
Allongement--
Surface alaire--
Profil aile--
Masse à vide--
Masse maxi--
Charge alaire--
Vitesse mini--
Vitesse maxi--
Finesse maxi
Taux de chute mini--
Nb sièges12
Structure--

[Pas de photo connue]
Projet Go-50/II [via Luft 46]

AUTRES INFORMATIONS

Constructeur(s)
ConstructeurConstruits
Gothaer Waggonfabrik0
Nombre total de constructionsProjet non abouti
Infos techniquesThe Go-50/II second design featured a boxy fuselage with a conventional tail mounted on a fuselage boom. It extended over the rear loading ramp, which hinged down and was fitted with a standard fin/rudder and tailplanes. The tapered wing was also shoulder mounted, and the landing gear was attached to the fuselage and braced off to the wings via struts. As in the first design, a two man crew was planned for the Go P.50/II.
Histoire résuméeEn 1939 suite à un appel du RLM (Reich Luft Ministerium), pour un planeur militaire susceptible de transporter 12 hommes et leurs bagages, Alfred Kalkert avait dessiné deux appareils répondant à cette demande : le Go-50/I (planeur canard) et le Go-50/II plus conventionnel. Mais l'appareil ne fut pas construit et le projet n'eut pas de suite.Mais ensuite Kalkert a dessiné le Gotha-Kalkert Ka-430 qui devait beaucoup au Go-50/II.
Liens personnalités Pas de personnalité associée.

SOURCES DOCUMENTAIRES

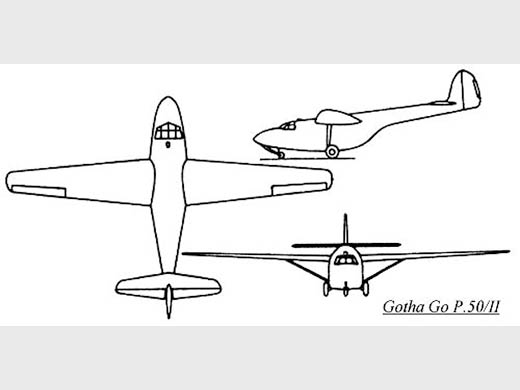

Liens WEBSite : Luft 46 . Note + plan 3 vues. (2012-06-08 CL)
LivresPas de livre référencé.

MODÈLES RÉDUITS

Pas de plan ou kit référencé.
Fiche n° 3732 [Dernière mise à jour : 2012-06-08]
