Hollestelle AFH-3

DONNÉES GÉNÉRALES
Année du premier vol
(ou de design, si seul projet)
2001
Pays Canada
Designer(s) HOLLESTELLE, Ed
Premier constructeur Ed HOLLESTELLE, Sosa (Canada)
Type d'appareil Planeur
Fonction Performance

SPÉCIFICATIONS TECHNIQUES
Envergure 16.6 m
Longueur--
Hauteur--
Allongement--
Surface alaire--
Profil aile--
Masse à vide--
Masse maxi--
Charge alaire--
Vitesse mini--
Vitesse maxi--
Finesse maxi
Taux de chute mini--
Nb sièges1
StructureComposite

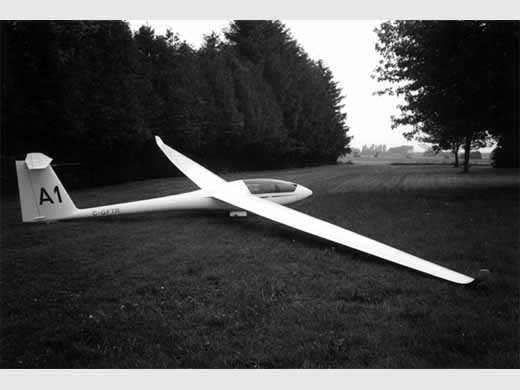

[Photo d'origine inconnue]

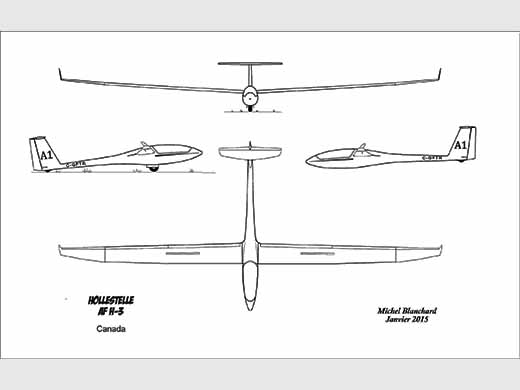

[Dessin Michel Blanchard]

AUTRES INFORMATIONS

Constructeur(s)
ConstructeurConstruits
Ed HOLLESTELLE, Sosa (Canada)1
Nombre total de constructions1
Infos techniquesConstruction conçue à partir d'ailes de Ventus, avant du fuselage d'un Ventus A accidenté, et empennage de SZD-55 ! Empennage en T.
Histoire résuméeAnnonce de mise en vente sur Wings and Wheels (11/2014) :
One of a kind 15/17.7 M, glider. Small cockpit (Schempp-Hirth A-size) Flapped ship with trailing edge dive brakes. Wing and tail ballast tanks. Finished with Simtec.Light green tinted canopy. Fully instrumented and Cobra trailer with tow out gear. 15M has Masak winglets, 17.7M are LS style winglets. Performance 47/48 range.Licensed “Amateur Built” in Canada. Should be no problem to licence “Experimental” in the USA.
Liens personnalités Pas de personnalité associée.
RemarquesAFH-3 pour les initiales du constructeur et son troisième planeur.

SOURCES DOCUMENTAIRES

Liens WEBSite : Wings and wheels . Photo. (2015-01-18 CL)
LivresPas de livre référencé.
Autres sourcesBuilding the AFH-3, par Ed HOLLESTELLE, Free Flight n° 5, octobre-novembre 2002. Texte + 3 photos [via Paul Tolson, 12/2014]
An AFH-3 update, par Ed HOLLESTELLE, Free Flight n° 2, avril-mai 2008. Texte + 2 photos

MODÈLES RÉDUITS

Pas de plan ou kit référencé.
Fiche n° 4085 [Dernière mise à jour : 2015-01-19]
