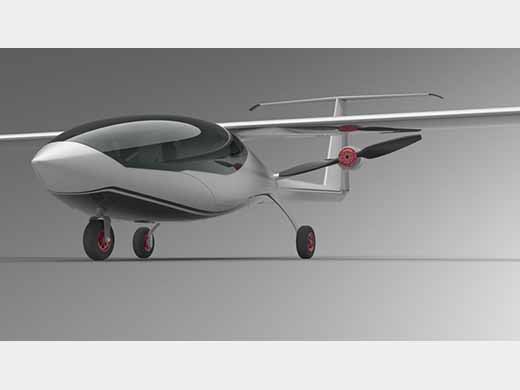

Eurosport Crossover

DONNÉES GÉNÉRALES
Année du premier vol
(ou de design, si seul projet)
2013
Pays Portugal
Designer(s) Eurosport Aircraft
Premier constructeur EuroSportAircraft, Guimaraes (Portugal)
Type d'appareil Motoplaneur (moteur rétractable)
Fonction Expérimental

SPÉCIFICATIONS TECHNIQUES
Envergure 15 m
Longueur 6.9 m
Hauteur 2.05 m
Allongement--
Surface alaire--
Profil aile--
Masse à vide307 kg
Masse maxi600 kg
Charge alaire--
Vitesse mini65 km/h
Vitesse maxi200 km/h
Finesse maxi
Taux de chute mini--
Nb sièges2
StructureComposite : résine époxy et carbone

[EuroSport Aircraft]
[Pas de plan 3 vues connu]

AUTRES INFORMATIONS

Constructeur(s)
ConstructeurConstruits
EuroSportAircraft, Guimaraes (Portugal)1
Nombre total de constructions1
Infos techniquesEmpennage en T. Deux moteurs sous les ailes. Hélice tractive.
Wing: 3 section wing parts, tailored profile, with electric operated double fowler flaps, powerful ailerons and wing tips
two base versions, 9,6m span and 15m span, and special version with in-flight telescopic wing span variation system
Easy remove of wing for transport, central wing span 6,5m at 1,2 m height making it easier to hangar
Fuselage: As in all other components, epóxy resin and carbon.
Central engine or batteries position, make easier Cg location, with pilot and passenger at front of fuselage, side by side seating
Rear compartment holding the 2 electric motors and prop Central compartment to hold the landing gear.
Landing gear: Three-wheel construction of laminated spring gear with a steerable nose wheel. Electric retractable equipped with hydraulic disc brakes. They are actuated by single power/brake lever on center console,
Powerplant: Two high performance synchronous 3 phase electric permanent magnets motor
Take off power 80 Kw, continuous 60Kw, 2000 rpm. 4 Lithium-technology batteries with BMS.
Two propellers 1,45m diameter
Histoire résumée--
Liens personnalités Pas de personnalité associée.

SOURCES DOCUMENTAIRES

Liens WEBSite : Eurosport Aircraft . Site du CrossOver. (2015-06-17 CL)
Site : Eurosport Aircraft . Page Facebook du designer. (2015-06-17 CL)
Site : Air Britain Photographic Images Collection . Photo. (2015-06-17 CL)
Site : YouTube . Présentation. (2015-06-17 CL)
Site : Cafefoundation . Eurosport Crossover Sports Many Tricks. (2015-06-17 CL)
Site : Cafefoundation . Eurosport Exploring New Configurations. (2015-06-17 CL)
Site : YouTube . Vidéo 3' 22". (2015-06-17 CL)
LivresPas de livre référencé.
Autres sources[via Peter Butt, 17/06/2015]

MODÈLES RÉDUITS

Pas de plan ou kit référencé.
Fiche n° 4134 [Dernière mise à jour : 2015-06-17]
