CVV-1 Pinguino

Autre nom (ou nom en langue originelle) : GP-1 Pinguino
DONNÉES GÉNÉRALES
Année du premier vol
(ou de design, si seul projet)
1937
Pays Italie
Designer(s) PRETI, Ermenegildo & GARBELL, Maurizio
Premier constructeur CVV Centro di volo a vela Politecnico di Milano
Type d'appareil Planeur
Fonction Performance

SPÉCIFICATIONS TECHNIQUES
Envergure 15.3 m
Longueur 6.5 m
Hauteur--
Allongement15
Surface alaire15.2 m2
Profil aileGöttingen 535 vers NACA 23012
Masse à vide170 kg
Masse maxi250 kg
Charge alaire15.2 kg/m2
Vitesse mini--
Vitesse maxi--
Finesse maxi25.3
Taux de chute mini0.69 m/s
Nb sièges1
StructureBois et toile

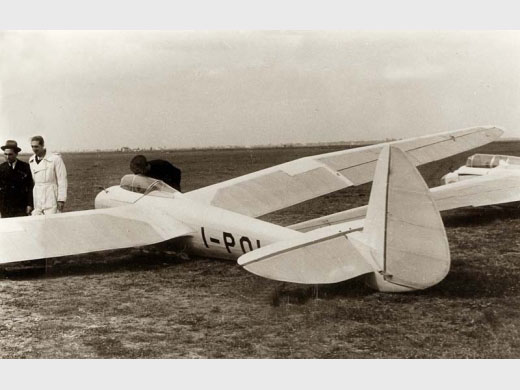

[via Vincenzo Pedrielli]

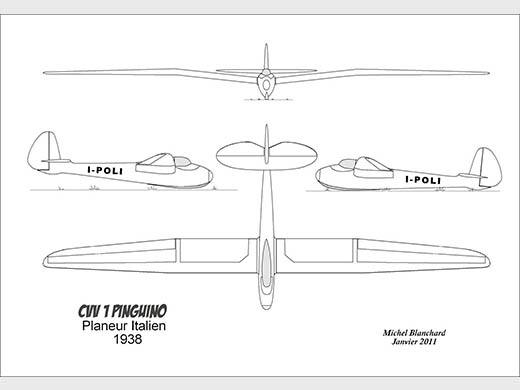

[Dessin Michel Blanchard]

AUTRES INFORMATIONS

Constructeur(s)
ConstructeurConstruits
CVV Centro di volo a vela Politecnico di Milano4
Nombre total de constructions4
Infos techniquesAiles en mouette, médiane et ailerons différentiels. Aérofrein à l'intrados et à l'extrados
Histoire résuméePremier vol sur l'aérodrome d'Arcore en décembre 1937.
Liens personnalitésPRETI Ermenegildo (Italie)

SOURCES DOCUMENTAIRES

Liens WEBSite : Vincenzo Pedrielli . Photo. (2015-07-20 CL)
LivresAlianti italiani
par PAJNO, Vittorio (2000) [p. 200, 201, 215. Photo + specs + 3 vues].
Alianti Italiani d'Epoca
par PEDRIELLI, Vincenzo (2011) [p. 112-113. Note + 3 photos + plan 3 vues + specs].
Der Segelflug im Wettbewerb der Völker
par ZUERL, Hubert (1941) [p. 40, 42. Specs + mention].

MODÈLES RÉDUITS

Fiche n° 419 [Dernière mise à jour : 2016-08-13]
