Fibera KK-1 Utu

DONNÉES GÉNÉRALES
Année du premier vol
(ou de design, si seul projet)
1964
Pays Finlande
Designer(s) ANTTILA, Ahto
Premier constructeur OY Fibera AB, Helsinki, Finlande
Type d'appareil Planeur
Fonction Performance

SPÉCIFICATIONS TECHNIQUES
Envergure 15 m
Longueur 6.49 m
Hauteur 0.9 m
Allongement20
Surface alaire11.24 m2
Profil aileNACA 63(3)618 vers 63(3)612
Masse à vide187 kg
Masse maxi310 kg
Charge alaire27.6 kg/m2
Vitesse mini63 km/h
Vitesse maxi250 km/h
Finesse maxi35 à 80 km/h
Taux de chute mini0.61 m/s à 74 km/h
Nb sièges1
StructureFibre de verre.

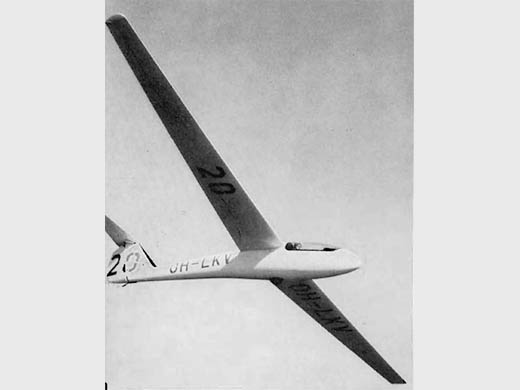

[Soaring Magazine, octobre 1966]

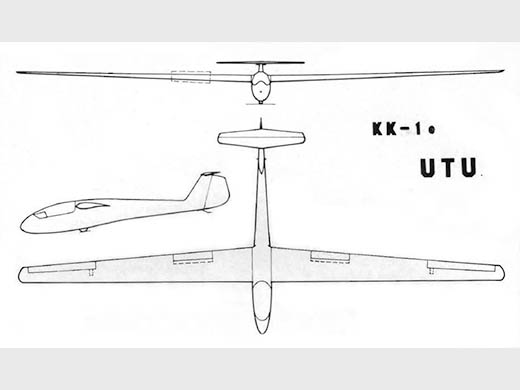

[Soaring Magazine octobre 1966]

AUTRES INFORMATIONS

Constructeur(s)
ConstructeurConstruits
OY Fibera AB, Helsinki, Finlande--
Nombre total de constructions--
Infos techniquesEmpennage en T.The Utu has a fixed landing wheel and a trailing-edge split spoiler/terminal-velocity brake. One surface rotates up like a spoiler and the other splits down like a flap and the resultant air deflection from the upper spoiler drives the wing down in a strong negative lift configuration.
Histoire résuméePlaneur de classe Standard qui a volé pour la première fois le 14 août 1964.
Liens personnalités Pas de personnalité associée.
Exemplaires existants
Immatriculé : OH-368 (En exposition), localisation : Suomen Ilmailumuseosäätiö / Finnish Aviation Museum Foundation.
Immatriculé : OH-LKF (En exposition), localisation : Karhulan Ilmailukerhon Lentomuseo (Finland)
Pack(s) photosImmatriculation : OH-368. Photographié par Suomen Ilmailumuseo () sur Owaru Oy 8 photos
Immatriculation : OH-LKF. Photographié par Karhulan Ilmailukerhon Lentomuseo () sur Owaru Oy 18 photos
Compléments docs

SOURCES DOCUMENTAIRES

Liens WEBSite : UIUC Applied Aerodynamics Group's . NACA 63(3)-618 airfoil. (2011-09-23 (JM))
Site : UIUC Applied Aerodynamics Group's . NACA 63(3)-618 fichier DAT. (2011-09-23 (JM))
Site : Iwaru Oy . 2 packs photos. (2012-01-07 CL)
LivresAerotyp Segelflugzeuge
par SCHMIDT, Heinz A. F. (1969) [p. 40-41. Photo + 3-vues + specs].
Sailplanes 1945-1965
par SIMONS, Martin (2001) [p. 268. Note + photo + plan 3 vues + specs].
Autres sourcesUTU - Finnish fiberglass sailplane, Soaring octobre 1966 p 14. Texte + 5 photos + plan 3 vues + specs
Soaring décembre 1966 p 27. Publicité.

MODÈLES RÉDUITS

Pas de plan ou kit référencé.
Fiche n° 580 [Dernière mise à jour : 2012-01-15]
