Hütter H-17 A

Autre nom (ou nom en langue originelle) : Göppingen Gö-5
DONNÉES GÉNÉRALES
Année du premier vol
(ou de design, si seul projet)
1934
Pays Autriche
Designer(s) HÜTTER, Ulrich & HÜTTER, Wolfgang
Premier constructeur
Type d'appareil Planeur
Fonction Entraînement

SPÉCIFICATIONS TECHNIQUES
Envergure 9 m
Longueur 4 m
Hauteur--
Allongement10
Surface alaire9 m2
Profil aile--
Masse à vide65 kg
Masse maxi158 kg
Charge alaire--
Vitesse mini--
Vitesse maxi--
Finesse maxi17
Taux de chute mini--
Nb sièges1
StructureBois et toile

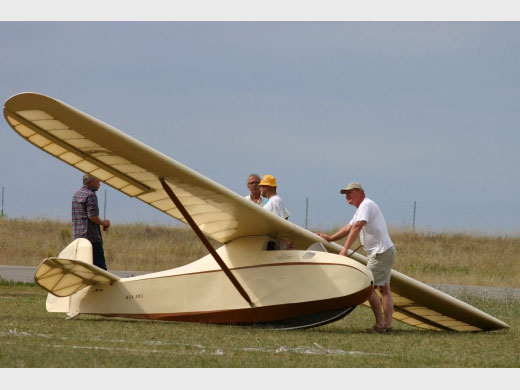

Magnifique restauration du BGA 490
[Keimel]

AUTRES INFORMATIONS

Constructeur(s)
ConstructeurConstruits
--
Nombre total de constructions--
Infos techniques--
Histoire résuméeDessiné par Ulrich Hütter, encore étudiant à la Technische Hochschule, Wien. Le prototype, A-Margit, fut testé en vol à Salzburg en septembre 1934.
ou Güppingen 5
The H 17 was designed by the Hutter brothers in Salzburg, Austria. The 17 indicated the glide ratio. They sold plan sets until they joined Schempp-Hirth, which then built about five as the Goppingen 5 with the addition of a windshield and main wheel. Many were built from plans worldwide and several are still flying. A post-war version was developed and marketed as the H 17 B with enclosed cockpit, lengthened fuselage and airbrakes. The H 17B has slightly increased span and empty and loaded weights increased about 50%. One H 17 belongs to the National Soaring Museum. The Vintage Sailplane Association has plans.
The Hütter 17 was the first sailplane designed by Wolfgang and Ulrich Hütter in 1934. As college students, the goal was to build a small and manueverable sailplane to be flown in the Alps near Salzburg, Austria, where they were going to school at the time.
The design goal was for a 17:1 glide ratio (hence the design’s name) and the overall design is similar to other sailplanes of that era such as the Grunau Baby, Schempp-Hirth Wolf and a number of others and used a high, strut braced wing pylon mounted onto a hexagonal box cross section fuselage.
The airfoil was the commonly used Göttingen 535, a fairly thick (16%), high cambered (5.75%) airfoil, which was also used on the Grunau Baby and Wolf.
Performance was found to be quite good and the brothers went onto sell plans with many Hü 17s being built throughout Europe.Not long afterwards,the Hütter brothers went to Germany and worked for Schempp-Hirth, having a part in the design of the Göppingen 5(a further development of the Hü 17 witha main wheel and windscreen) of which five were built, the Minimoa, Govier, the Hü 28 and later Hü 30, both continuingwith the small, light and manueverable design criteria.
After World War II, the update Hütter 17b was developed and plans sold. This version had an enclosed cockpit and
slightly greater wingspan/area.

Scott Light Aircraft Ltd., Dunstable, Angleterre, a construit des Hütter H-17 sous licence, à partir de 1937.
Plans* Page Scale Soaring : plans en GIF de la version A (?)
* Liasse de plans dessinés par Hütter disponibles à l'IG Albatross (http://www.ig-albatros.ch/dokumente/IG_Albatros_Bilder_und_Planarchiv.pdf ; contact : beat.galliker@bluewin.ch)
* Liasse des plans constructeur numérisés (DVD) en vente au GPPA (Musée Espace Air Passion, Angers-Marcé).
Liens personnalités Pas de personnalité associée.
RemarquesSpecs Keimel différentes.
Exemplaires existants
Immatriculé : BGA 490 (En état de vol), localisation inconnue.
Immatriculé : BGA-490 (En état de vol), localisation inconnue.
Immatriculé : NXH17U (En état de vol), localisation : USA
Immatriculé : OE-0050 (Inconnu), localisation : Musée Aviaticum Wiener Neustadt, Autriche
Immatriculé : Type B (En état de vol), localisation inconnue.
Pack(s) photosImmatriculation : BGA-490. Photographié par Vincent Besançon (VGC Angoulême 2006) sur Rétroplane.net 34 photos, 4 Mo
Immatriculation : Type B. Photographié par Vincent Besançon (VGC Angoulême 2006) sur Rétroplane.net 46 photos, 6 Mo

SOURCES DOCUMENTAIRES

Liens WEBSite : WLM-Modellbau . 50 photos. (2009-11-02 CL)
Site : Scale Soaring UK . Note + 11 photos + 4 plans + specs. Photos du BGA 490 retauré (2009-11-02 CL)
Site : Site de Günther Hennig . Note + 6 photos + 1 image + specs. (2009-11-02 CL)
LivresBritish Gliders and Sailplanes 1922-1970
par ELLISON, Norman (1971) [p. 165. Note + specs].
Luftfahrzeugbau in Österreich
par KEIMEL, Reinhard (2003) [p. 109. Note + photo + plan 3 vues + specs].
Sailplanes 1920-1945
par SIMONS, Martin (2001) [p. 156. Note + specs].
Segelflug am Spitzerberg und Hundseimer Kogel
par KEIMEL, Reinhard (2010) [p. 59. Une photo].
Autres sourcesHütter 17, the difference beetween A and B, VGC News n° 119 (winter 2006) p 46-47, texte + plan 3 vues.
Pack de documentation en vente à la Vintage Sailplane Association (VSA Archives, PO Box 307, Maywood, CA 90270 USA). Archiviste Raul Blacksten (raulb@earthlink.net).
