Lamson L-106 Alcor

DONNÉES GÉNÉRALES
Année du premier vol
(ou de design, si seul projet)
1973
Pays USA
Designer(s) LAMSON, Robert
Premier constructeur LAMSON, Robert
Type d'appareil Planeur
Fonction Expérimental

SPÉCIFICATIONS TECHNIQUES
Envergure 20.12 m
Longueur 7.62 m
Hauteur 1.83 m
Allongement--
Surface alaire14.31 m2
Profil aile--
Masse à vide272 kg
Masse maxi430 kg
Charge alaire--
Vitesse mini--
Vitesse maxi225 km/h
Finesse maxi
Taux de chute mini--
Nb sièges1
StructureLamson's interest in composite construction led to the innovative design of the Alcor. The sailplane's fuselage consists of Sitka spruce veneers overwrapped with fiberglass and foam sandwich assemblies over "S" glass monospars were used for the wings and tail. This construction allowed for an airframe that was light, yet very strong. These materials also had an interesting side effect -- the wings bent upwards in flight. Although this might be a bit disconcerting to some, it actually has aerodynamic benefits that improved performance.

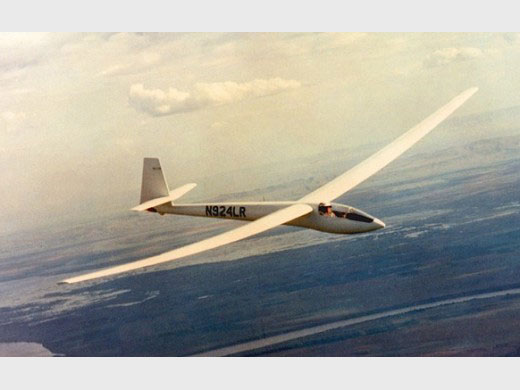

[Photo d'origine inconnue]
[Pas de plan 3 vues connu]

AUTRES INFORMATIONS

Constructeur(s)
ConstructeurConstruits
LAMSON, Robert1
Nombre total de constructions1
Infos techniques--
Histoire résuméeThe Alcor, the first pressurized sailplane, was designed and first flown in 1973 as a research vehicle able to gain high altitudes while keeping the cockpit environment safe and comfortable. This was achieved by pressurizing the cockpit and building the ship light enough so that it could operate successfully in weak mountain wave conditions. The cockpit pressure differtial maintains two to three inches of mercury. The sole Alcor now belongs to the Museum Flight Foundation, Seattle, WA.
The Alcor, conceived during the early 1960s by Robert Lamson, was one of the first sailplanes in the U.S. made of composite materials. Today, similar materials have taken an ever more prominent role in the aviation industry. Other innovations, like a pressurized cockpit (a first for a sailplane) and a solar heater, keep the Alcor's pilot comfortable at high altitudes. Lamson flew the experimental sailplane recreationally from 1973 until it was donated for use in a scientific study.
From 1985 to 1989, the Alcor flew in a study of the Chinook Arch in Alberta, Canada. The Chinook Arch is a weather phenomenon associated with severe turbulence in the Canadian Rockies. Unlike powered aircraft, the Alcor could glide over the area of interest and collect undisturbed meteorological and environmental data for extended periods of time.
Liens personnalités Pas de personnalité associée.

SOURCES DOCUMENTAIRES

Liens WEBSite : Museum of Flight . Texte + 2 photos + specs. (2009-10-30 CL)
Site : Alex Sailplane Directory . Note + 1 photo + specs. (2009-11-06 CL)
LivresPas de livre référencé.

MODÈLES RÉDUITS

Pas de plan ou kit référencé.
Fiche n° 792 [Dernière mise à jour : 2010-02-06]
