Letov L-22 Libis

DONNÉES GÉNÉRALES
Année du premier vol
(ou de design, si seul projet)
1961
Pays Yougoslavie
Designer(s) SLANOVEC, Marjan
Premier constructeur Letov Ljubiana Slovénie
Type d'appareil Planeur
Fonction Entraînement

SPÉCIFICATIONS TECHNIQUES
Envergure 16 m
Longueur 7.86 m
Hauteur--
Allongement--
Surface alaire--
Profil aile--
Masse à vide--
Masse maxi--
Charge alaire--
Vitesse mini--
Vitesse maxi--
Finesse maxi
Taux de chute mini--
Nb sièges1
Structure--

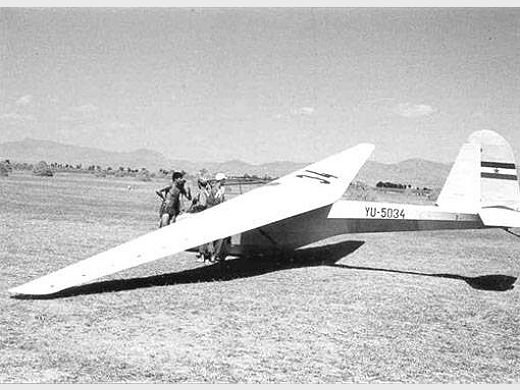

[Photo d'origine inconnue]
[via 2R Fly]

AUTRES INFORMATIONS

Constructeur(s)
ConstructeurConstruits
Letov Ljubiana Slovénie--
Nombre total de constructions--
Infos techniques--
Histoire résuméeThis sailplane was produced in LETOV Factory from Ljubljana, Slovenia ,later renamed LIBIS and produced LIBIS line of two seat gliders. In the sixties Letov 22 was standard basic trainer across Yugoslavia. One or two single seat Letov 21 trainers were produced , to replace then outdated Cavka (Crow) gliders, but without success.
Letov 22 has welded steel tube fuselage ,strut braced wood wing and central mounted landing wheel with skid on front . Instructor's seat was under the wings. Torsion box ,horizontal and vertical stabilizators were plywood covered. Rest of wings ,ailerons and rudders were fabric covered. I like this glider , in our old 34 one calm late afternoon I bounced behind a Kurir (Courier ) tow plane trying to manage my first solo , and anytime when I was seating in his spacious cockpit,looking trough rakish windshield ,with all strut and air brake noises around ,during final turns and touch down, made me a small Walter Mitty flying combat glider.

De plus, L-22 l'école a été construite en un planeur LIBIS usine à Ljubljana. Plan Dvosedo était de construction mixte, un service de qualité dédié école pilote. Il a été conçu dans le Bureau Design de l'usine en vertu de la tête d'ING. Marjan Slanovcem. A été construit en 1961 et est un excellent servir ses fins.
Liens personnalités Pas de personnalité associée.
Compléments docs

SOURCES DOCUMENTAIRES

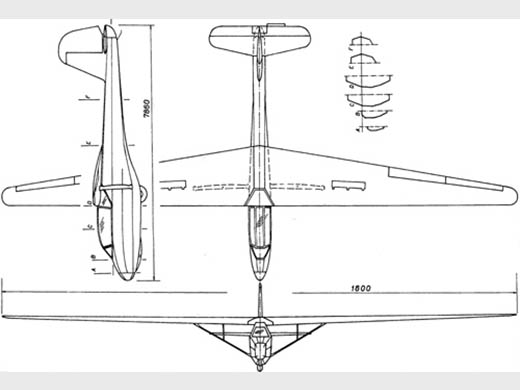

Liens WEBSite : 2R Fly . Note + 3 photos +plan 3 vues. (2011-02-09 CL)
LivresPas de livre référencé.

MODÈLES RÉDUITS

Pas de plan ou kit référencé.
Fiche n° 815 [Dernière mise à jour : 2010-02-09]
