Szokolay-Jancso M-22

DONNÉES GÉNÉRALES
Année du premier vol
(ou de design, si seul projet)
1937
Pays Hongrie
Designer(s) SZOKOLAY, András & JANCSÓ, Endre
Premier constructeur MSrE; Aero Ever Ltd., Aircraft Factory of Transylvania; different workshops of Aero Clubs
Type d'appareil Planeur
Fonction Performance

SPÉCIFICATIONS TECHNIQUES
Envergure 15 m
Longueur 5.8 m
Hauteur--
Allongement13.55
Surface alaire16.55 m2
Profil aileGö 535 (emplanture et milieu) NACA 99 (saumon)
Masse à vide180 kg
Masse maxi265 kg
Charge alaire16 kg/m2
Vitesse mini55 km/h
Vitesse maxi260 km/h
Finesse maxi22 à 67 km/h
Taux de chute mini0.8 m/s à 60 km/h
Nb sièges1
StructureTout bois

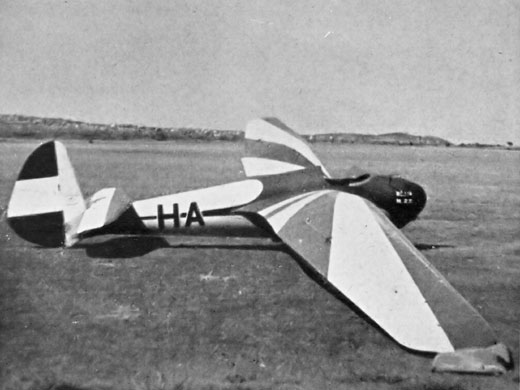

[Der Segelflug im Wettbewerb der Völker - collection J-M. Mesot]

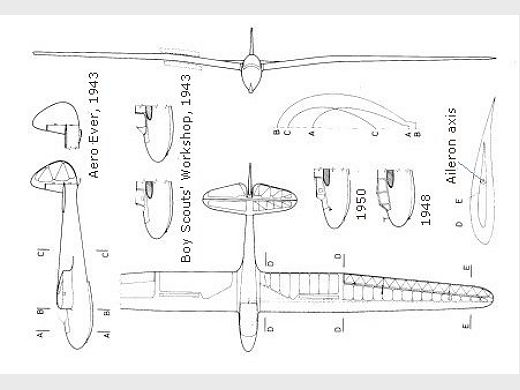

[via Hungarian Gliders]

AUTRES INFORMATIONS

Constructeur(s)
ConstructeurConstruits
MSrE; Aero Ever Ltd., Aircraft Factory of Transylvania; different workshops of Aero Clubs20
Nombre total de constructions20
Infos techniquesLes ailerons pouvaient être levés ou baissés pour servir de volets.
Histoire résuméeAs technics of thermal flights progressed the MSrE (Mûegyetemi Sportrepülõ Egyesület - Aero Club of the Technical University) decided in the middle of the '30s to build a high performance glider. At first the Rhönbussard was selected, nevertheless after a couple of parts had been built it was decided to design a new glider. Endre Jancsó and András Szokolay with the guidance of Ernõ Rubik designed a completely new glider incorporating the parts of the Rhönbussard already built.
The first glider, named Turul, was purchased by the president of the Aero Club of Egypt who happened to be on a visit to Hungary. In 1938 Edward Mole, an English flight officer, performed 147 consecutive loops with the Turul in Egypt.
Altogether 20 gliders were built. The first 3 glider were constructed at the workshop of MSrE. In 1942-43 a series of 10 were built at Aero Ever Ltd., and 4 examples were built at the Aircraft Factory of Transylvania. The other M-22s were built at different workshops of different Aero Clubs.
The glider was fully aerobatic. In Hungary the first negative loop flown with a glider was performed with an M-22. In Hungary the first 300 km cross-country was flown with an M-22 as well. The longest distance flown with M-22 was 356 km (1942) and the greatest height gain was 3845 m (1942). The first Hungarian speed record of 100 km triangle - 33,4 km/h - was also achieved by an M-22 (1948).
Liens personnalités Pas de personnalité associée.
Compléments docs

SOURCES DOCUMENTAIRES

Liens WEBSite : Hungarian Gliders (site de Gábor Fekecs) . Texte + 4 photos + plan 3 vues + specs. Avec aussi une vidéo. (2010-06-03 CL)
LivresDer Segelflug im Wettbewerb der Völker
par ZUERL, Hubert (1941) [p. 76, 80. 1 photo + mention].

MODÈLES RÉDUITS

Pas de plan ou kit référencé.
