DONNÉES GÉNÉRALES |
Année du premier vol (ou de design, si seul projet) |
1954 |
Pays | USA |
Designer(s) | MITCHELL, Don S. |
Premier constructeur | Don S. MITCHELL (USA) |
Type d'appareil | Planeur |
Fonction | Performance |
SPÉCIFICATIONS TECHNIQUES |
Envergure | 12.19 m |
Longueur | -- |
Hauteur | -- |
Allongement | 14.7 |
Surface alaire | 9.85 m2 |
Profil aile | Wortmann FX-05-191 (Nimbus III) |
Masse à vide | 204 kg |
Masse maxi | 304 kg |
Charge alaire | 30.8 kg/m2 |
Vitesse mini | -- |
Vitesse maxi | -- |
Finesse maxi | 39 à 106 km/h |
Taux de chute mini | 0.73 m/s à 71 km/h |
Nb sièges | 1 |
Structure | Fuselage tout bois. Aile bois et toile |
Constructeur(s) |
| ||||||
Infos techniques | Profil de faible épaisseur avec un bord d'attaque aigu. | ||||||

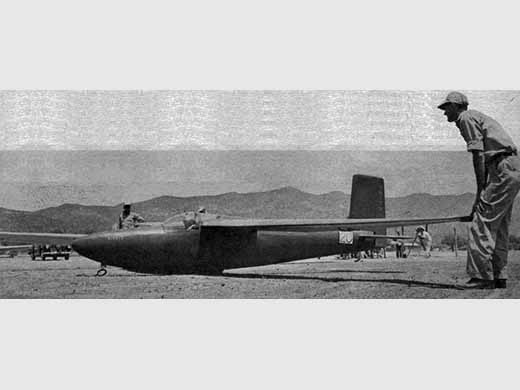

Histoire résumée | Série de planeurs dessinés et construits par Don S. MITCHELL : Designed and built the first of the “Nimbus” sailplane series. “Nimbus I” was 46’, single-seater, full cantilever, all wood glider. After many good flights, it was wrecked making an off field landing during a contest in 1954. Designed and built ”Nimbus II”. A 50’, single-place, all wood, cantilever sailplane. This ship had, for the time, outstanding performance and was entered in three national meets and many California soaring contests and get-togethers. Designed and built “Nimbus III”, a 40’, cantilever, single— place, all wood sailplane. (Ed Blalocks "Nimbus" had a 46’ wing.) “Nimbus III”, was winner of the High Performance Sailplane Design Award at the 23rd National Soaring Contest, Grand Prairie, Texas. “Nimbus III” won the Hawley Bowlus Helm’s award at the San Diego Soaring meet at Torrey Pines. Without help I built 4 complete “Nimbus III” sailplanes and sent out 7 “partial kits” (50% of the ship completed) Designed and built “Nimbus IV”. This ship had an all metal fuselage and tail with all wood, 50’, cantilever glider. It did not perform as expected and was discarded. Le "Nimbus III" construit par Don MITCHELL, a participé aux Championnats US en 1954. Le planeur était piloté par le Dr. J. B. SAWYER. | ||||||
Liens personnalités | Pas de personnalité associée. | ||||||
Compléments docs |
Liens WEB | Site : Airplanes and Rockets . Note + photo. (2014-11-08 CL) Site : Sailplane Directory . Nimbus III. Note + specs. (2014-11-13 CL) Site : The Wing is The Thing (TWITT) . Autobiographie de Don Mitchell. (2014-11-13 CL) Site : US Pacific . Don Mitchell. Biographie.. (2014-11-13 CL) |
Livres | Pas de livre référencé. |
Autres sources | Soaring Nationals - Pictures of This Year's Meet, Air Trail, décembre 1954. The 21st National Contest, Soaring, sept/oct 1954. Photo couverture et article. Soaring mai-juin 1956 p 17 et 19. Texte + 2 photos. Soaring janvier-février 1957 p 23. Publicité + photo. Soaring mars-avril 1957 p 22. Publicité + photo. Soaring juillet-août 1957 p 20. Photo Nimbus II (attention) Soaring février 1960 p 18. Photo Nimbus IIIB. Soaring septembre-octobre 1958 p 23. Photo Nimbus II. Soaring octobre 1961 page 8. photo. Soaring avril 1963 p 14. Note + photo. |
