Partenavia Sea-Sky

DONNÉES GÉNÉRALES
Année du premier vol
(ou de design, si seul projet)
1962
Pays Italie
Designer(s) Partenavia
Premier constructeur Partenavia, Napoli (IT)
Type d'appareil Hydroplaneur
Fonction Expérimental

SPÉCIFICATIONS TECHNIQUES
Envergure 7.5 m
Longueur 6.1 m
Hauteur 2.2 m
Allongement--
Surface alaire11.25 m2
Profil aile--
Masse à vide85 kg
Masse maxi170 kg
Charge alaire15.2 kg/m2
Vitesse mini37 km/h
Vitesse maxi--
Finesse maxi9
Taux de chute mini1.49 m/s à 54 km/h
Nb sièges1
Structure--

[via Michel Blanchard]
[via Michel Blanchard]

AUTRES INFORMATIONS

Constructeur(s)
ConstructeurConstruits
Partenavia, Napoli (IT)--
Nombre total de constructions--

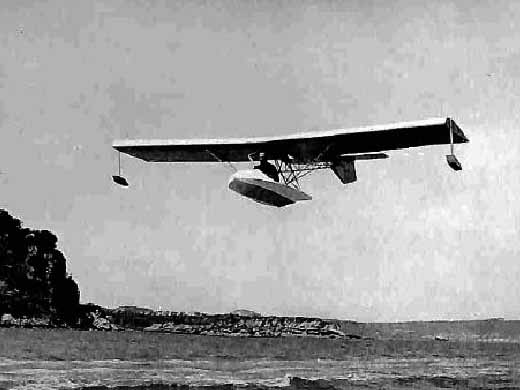

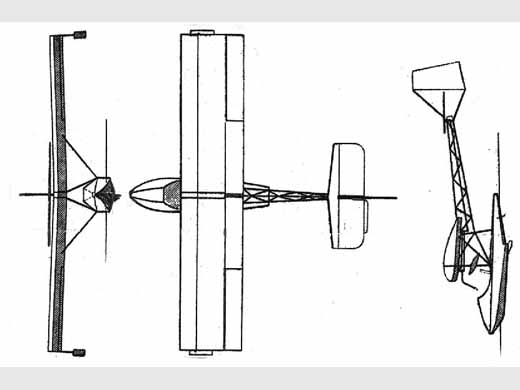

Infos techniques The Sea-Sky was a small single-seater with the pilot seated in a single-step speed boat-like wooden semimonocoque hull, with a small water rudder under the step, and the cantilever tail unit, of fabric covered metal construction, carried on a steel tube tail boom. The tailplane is a one-piece all-moving surface, with a tab on the port trailing edge. The braced parasol wing is of constant chord and is carried on an inverted vee steel tube structure at the rear of the hull, with steel tube bracing struts at the sides; the wing is a two-spar wooden structure, fabric-covered, with plain fabric-covered wooden ailerons and small fixed floats at the squared-off wing tips. The pilot sits in an open cockpit and has an overhanging control column and conventional rudder bars; the Sea-Sky is designed to be towed behind a motor boat. It is, however, capable of free flight and the wings and tailplane can be easily removed for transport and storage.
Histoire résuméeL'un des rares hydroplaneurs, le Sea-Sky fut dessiné et produit au début des années 1960 par la société Partenavia de Naples (Italie).
Liens personnalités Pas de personnalité associée.
Compléments docs

SOURCES DOCUMENTAIRES

Liens WEBSite : All Aero . Note + specs. (2017-04-26 CL)
Site : AviaDejaVu . Photo. (2017-04-26 CL)
LivresPas de livre référencé.
Autres sourcesJane's All the World Aircraft 1966

MODÈLES RÉDUITS

Pas de plan ou kit référencé.
Fiche n° 997 [Dernière mise à jour : 2017-04-26]
